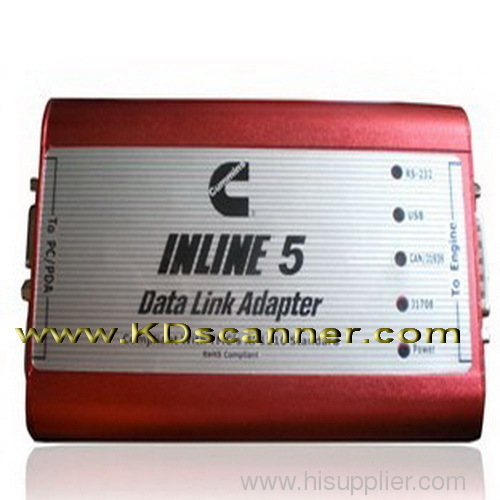

Cummins inline 5 Data Link Adapter

Cummins INSITE 7.3 is a PC-based software application that provides quick and easy access to your engines electronic performance information, which enables faster service turnaround times. INSITE helps to ensure accurate procedures and diagnosis and limit downtime, while increasing productivity and profits.

Product Description:

Cummins INSITE7.3 software supplies engine information quickly, getting the inside details you need. No matter what kind of equipment you run, INSITE is the one support product to have in your virtual tool box to fit every Cummins electronic engine.

Cummins INSITE 7.3 can provide your business with:

1. Trip and vehicle information

2. Parameter and feature adjustment

3. Accurate problem diagnosis

4. Complete wiring diagram sand sensor location maps

5. Step-by-step trouble-shooting information

6. Fault tree information

7. Fault code and symptom-based diagnostics

8. Engine diagnostic tests

9. Tools to create templates for a group of vehicles

10. Fleet management/driver reward programs

11. Audit trail information

12. Enhanced ECM security

Cummins INSITE 7.3 is offered in four functional levels: Basic, Lite, RSGR and Pro, ranging from a read only access level to full-function access and capability for the service professional. TOP Authority for FREE

Function:

Supports SAE J1708/J1587 and J1939/CAN data links

Supports USB full speed port at up to 2M baud rate

Supports RS-232 PC/PDA serial port at up to 115.2k baud rate

Is fully compliant with TMC's RP1210 standard

Small enough to fit in pocket

Aluminum housing provides ruggedness

Derives 8 V to 50 V DC power from vehicle

Includes advanced processor for maximum speed and performance

Internal Flash memory allows firmware upgradeability

Includes 5 LEDs to indicate power and USB, RS-232, J1708/J1587, and J1939/CAN communications

Rated for -40   to +85   C operating temperature

INLINE 5 meets Cummins in-cab environmental test requirements

INLINE 5 product kit (P/N 4918416) includes:

1. INLINE 5 data link adapter (P/N 3165033)

2. USB 2 meter cable (P/N 4918419)

3. DB25F/9-pin data link cable (P/N 3165159)

4. DB25F/6-pin data link cable (P/N 3165160)

5. OBDII 16pin cable

6. INLINE 5 software CD (P/N 4918417)

7. Carry Case
